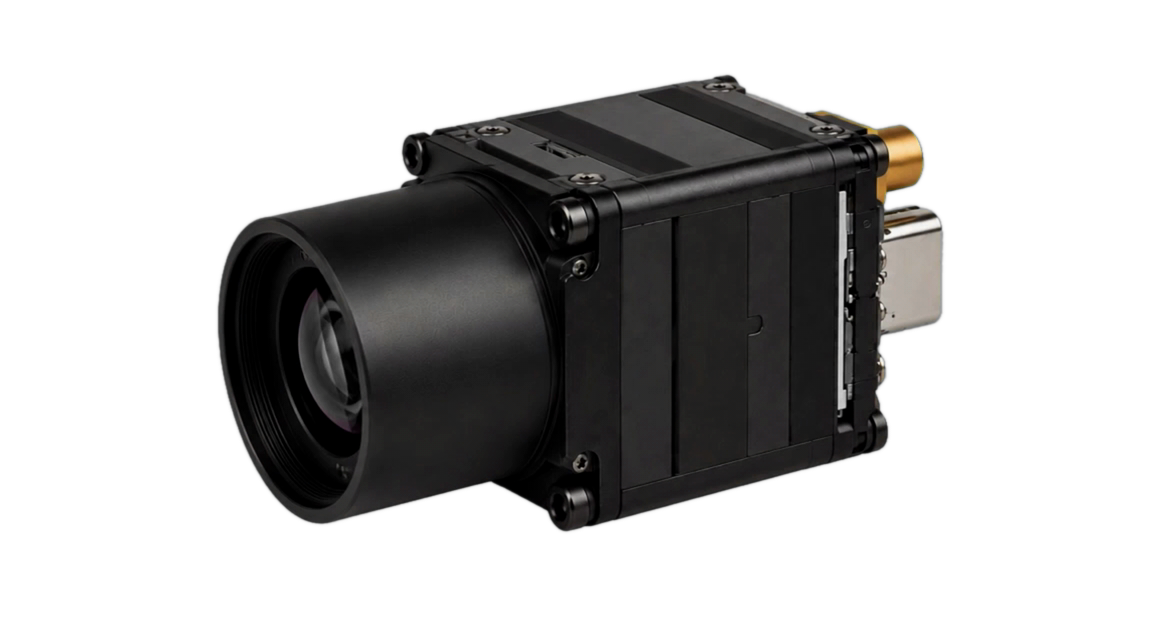

640 x 480 resolution, 12 um sensor pitch, 8 - 14 um wavelength
Technology
Specs and Integration
<=30 mK and 60 FPS for responsive thermal capture
High gain 5 C to 120 C, low gain 5 C to 500 C optional
Lens options, BT656, UVC, CMOS, USB + Analog VPC
Core imaging values for teams evaluating clarity, sensitivity, and acquisition speed.
- Resolution
- 640x480
- Wavelength
- 8 - 14um
- Sensor Pitch
- 12um
- NETD
- <=30mK
- Frame Rate
- 60 FPS
Dynamic and radiometric ranges for monitoring, anomaly detection, and thermal interpretation.
- Scene Dynamic Range
- High gain: 5 C to 120 CLow gain: 5 C to 500 C (Opt.)
- Radiometric Accuracy
- HG: +/-3 C @ Ta: -20~50 CLG: +/-5 C @ Ta: -20~50 C
Configuration flexibility for optics, correction, and deployment behavior.
- Shutter / Shutter-less
- Shutter (Std.) / Shutter-less (Opt.)
- Lens Options
- 4.8(M17mm)9.1(M18mm)19(M25mm)Others upon request
- Non-Uniformity Correction
- Factory CalibrationFlat Field Correction
The practical interface layer for OEM products, prototypes, and deployed operational systems.
- Video Output
- BT656, UVC, CMOS
- Size & Weight (w/o Lens)
- 21mm x 21mm, 30g
- Accessories
- USB + Analog VPC
